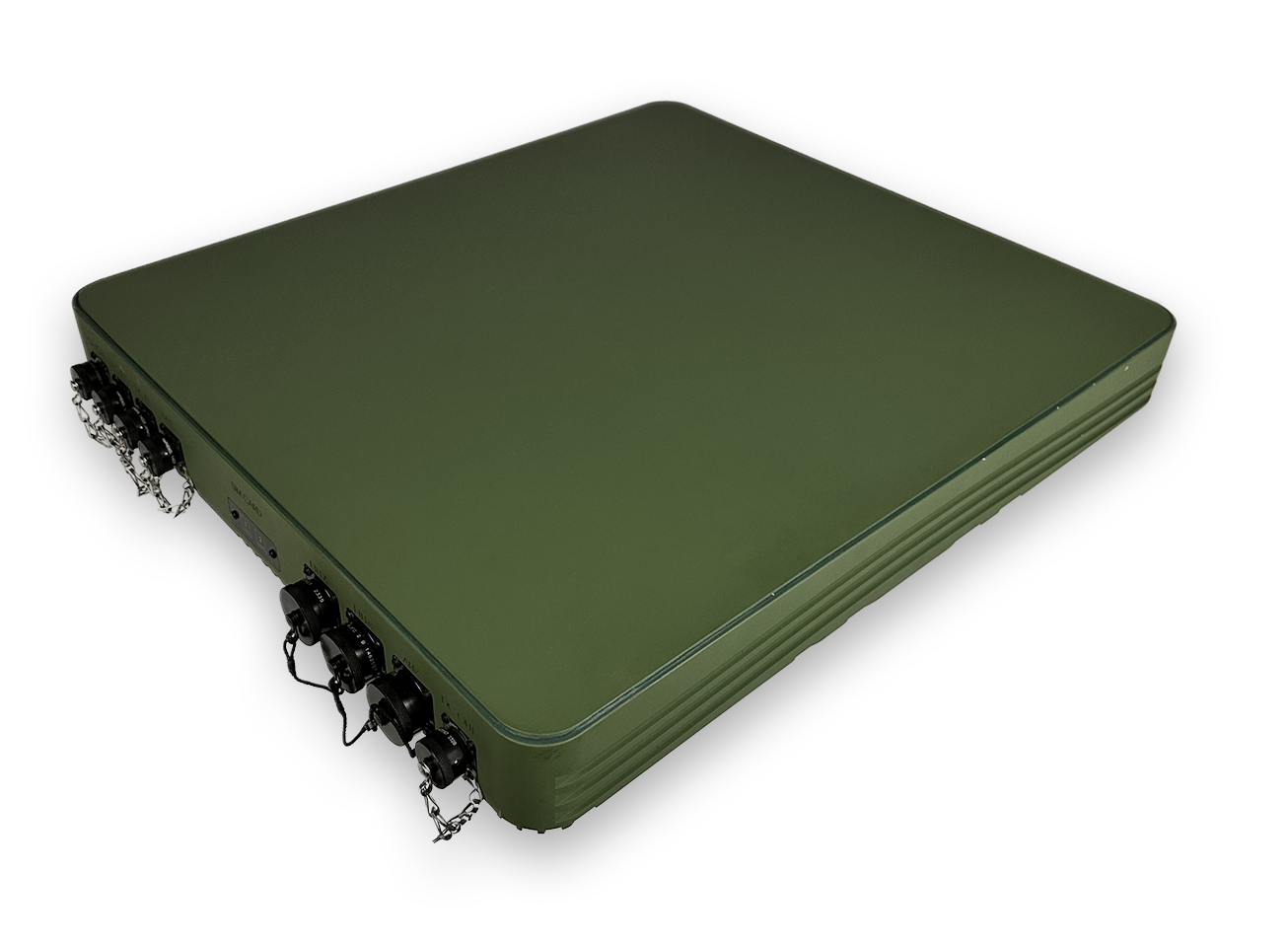

STORM V3
The STORM V3 is a rugged, portable SATCOM system delivering reliable COTM and COTP connectivity with high-speed, low-latency LEO performance in any environment.
Key Features
With next‑generation routing, rapid activation, and multi‑platform mounting options, STORM V3 is the backbone for teams that require dependable, real‑time data anywhere in the world.
- High‑speed LEO connectivity up to 200 Mbps down / 20 Mbps up
- Supports COTM & COTP operational requirements
- MIL‑STD‑810G ruggedization for harsh environments
- IP68‑rated dust & water protection
- One‑button startup with automated satellite acquisition
- Multi‑network SD‑WAN routing for resilience
- Works on vehicles, maritime platforms & field kits
- Smartphone & web‑based management tools
Situational Awareness
Mission-ready connectivity: fast, far-reaching, unstoppable. The STORM Difference.
Global LEO Connectivity
Stay connected anywhere with roaming coverage that doesn’t rely on terrestrial infrastructure.
200/20 Mbps Performance
High-bandwidth LEO enables real-time video, voice, cloud sync, and ISR data transfer.
COTM + COTP Operation
Maintain seamless link stability whether stationary or moving over land or water.
One-Button Activation
No pointing/manual alignment — the terminal acquires and connects automatically.
SD-WAN Intelligent Routing
System dynamically chooses between Wi-Fi, cellular or satellite for uptime and optimization.
Plug-and-Play Deployment
No commissioning — connect power, subscribe, and it’s operational within minutes.
Rugged & Field-Proof
Built for harsh operational environments and extreme climate conditions.
Multi-Power Compatible
Supports multiple input sources including field power, vehicle feeds, and fixed installations.
Technical Specifications (Storm V3)
Frequency Band | |
Transmit | 14.0 GHz- 14.50 GHz |
Receive | 10.70 GHz-12.70 GHz |
Environmental & Reliability | |
Latency-LEO | 50ms |
MIL-STD | Designed to meet MIL-STD-810G |
Water Infiltration | Designed to meet IP68 |
Operating Temperature | -30°C to +50°C |
Interfaces |
Up to three 10/100/1000 Mbps RJ 45 ports Ethernet ports |
External SIM card access |
STORM V3 Options |
LTE WAN capable / Wi-Fi access point |
Fly-away transit case |
Suction cup mounts |
Magnetic mounts |
Luggage rack/roof mount |
Composition | |
Integrated Router | Ethernet Switch/WiFi |
Physical | Storm V3 COTM |
Dimensions | 23” x 20” x 2 1/4 “ |
Weight | < 30 lbs (13.6 Kg) |
Mounting | Industry standard mounting holes |
Power | |
Input DC | 12 VDC to 36 VDC |
Input AC | 100-240 VAC, 50/60 Hz |
BB-2590 Battery Input | 24 VDC |
Output | Optional 12 or 24 VDC output |
Power Consumption | 110-150W (steady state) 360W (initialization) |
Looking for more specifications on the STORM V3? Click the button below to view the full details…
STORM V3 In Action
Go beyond sat-phone limitations. STORM V3 keeps you online miles offshore with fast, reliable LEO broadband and a weather-hardened build that shrugs off spray, rain, and salt.
Frequently Asked Questions
Is STORM V3 suitable for both COTM and COTP missions?
Yes. STORM V3 is designed to deliver reliable connectivity whether the unit is moving or stationary. Its electronically steered antenna and robust LEO link allow operators to maintain communications during rapid maneuvers, long‑distance ground travel, or stationary command‑post operations. This flexibility makes it ideal for mission profiles that require seamless transitions between movement and hold positions.
Does STORM V3 require complex setup?
No. STORM V3 was engineered for rapid deployment with minimal operator involvement. The system features one‑button activation, automated satellite acquisition, and an intuitive web and mobile interface—allowing users to establish a secure, high‑speed link within minutes even in high‑pressure field conditions.
What environments can it operate in?
STORM V3’s MIL‑STD‑810G construction and IP68‑rated protection enable dependable performance in extreme environments. Whether exposed to sandstorms, heavy rain, salt spray, sub‑zero temperatures, or scorching heat, the system is optimized to maintain connectivity and operational stability in the world’s harshest conditions.
Can STORM V3 integrate into existing platforms?
Yes. STORM V3 supports a wide range of mounting, power, and networking configurations, making it compatible with vehicles, maritime vessels, trailers, field kits, fixed facilities, and portable command centers. Its flexible I/O options and compact footprint ensure smooth integration without requiring major platform modifications.
What kind of maintenance or updates does STORM V3 require?
STORM V3 is designed for low‑maintenance operation, with over‑the‑air firmware updates and remote diagnostics that keep the system current without the need for direct technician access. Routine checks involve verifying cable connections, confirming power input stability, and ensuring that the antenna surface remains clean for optimal performance.
How does STORM V3 ensure link resiliency during critical missions?
The system incorporates multi‑network SD‑WAN routing, enabling it to intelligently route traffic across available links for optimal performance. This means that even if one network path degrades, the STORM V3 automatically adjusts to maintain communication continuity—critical for defense, emergency response, and industrial operations where every second matters.
